Network Video Recorder - NVR5816 NVR5816 manufacturer from China VVS CCTV Limited

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

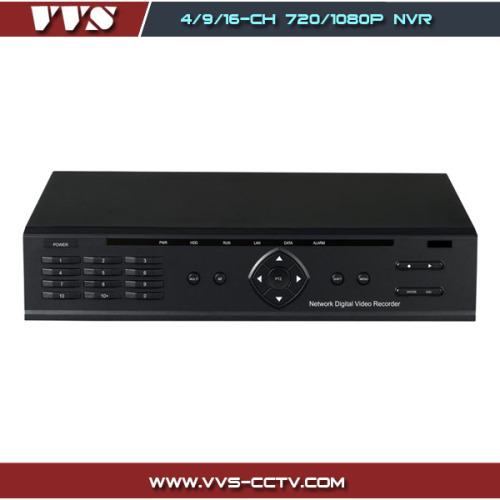

Model No.: NVR5816

Network Video Recorder, Surveillance Products

Model Number		NVR5816
Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable,variable bit stream and constant bit stream optional
Dual Stream		Each channel can set main streamand sub stream
Video Resolution		4ch 3MP or16ch 1080P or 20ch 720P
Monitoring Image Quality		1080P(1920×1080) / 720P(1280×720)
Image Motion Detection		Each screen can set mutipledetection areas and set 6-level sensitivity
Recording Playback Quality		1/4-ch720P or 1080P
Region Cover		Every channel can set 4 coverregions
Recording Mode		Support manual , auto, dynamicdetection, alarm trigger record mode
Backup Way		Support U disk, USB mobile HDD,USB DVD-RW . network storage and backup
Operation Way		Mouse, remote control, frontpanel, keyboard controller
Local Login		User name and password
Recording Storage		Local HDD, network
External Ports	Video Input	1×(19201080) +2×(1280720) IPcamera
	Video Output	1ch VGA+1ch HDMI
	Audio Output	1ch BNC auxiliary output
	Network Port	1 RJ45,10M/100M/1000Mself-adaptive LAN port
	RS485 Port	Full duplex standard 485 port,support 19 kinds of PTZ protocols
	USB Port	3 USB 2.0 ports(one on frontpanel, two on rear panel)
	Alarm Input	4-ch
	Alarm Output	1-ch
HDD	HDD Port	2 SATA HDD port
	MAX Capacity	Each port supports MAX 3TB HDD
Mobile Surveillance		Support( iPhone, Windows Mobile,BlackBerry, Symbian, Android) smart phone
Power Supply		12V/4A
Power Consumption		≤25W(without HDD)
Working Temperature		-10℃+55℃
Working Humidity		10-90
Dimension		Equipment: 350mm×240mm×70mm Packing: 409mm×365mm×129mm
Wight(without HDD)		N.W.: 1.7Kg;with packing:2.89Kg
Outside Carton		5pcs/carton. 675mm×425mm×385mm;weight: 15.22 Kg.
Installation Way		Desktop installation
